How to wire IDFace to OSDP
1. **Wiring Overview**: Demonstrates how to wire the iDFace reader to an existing OSDP reader module.
2. **OSDP Support**: Installation is supported with the OMNIA system.
3. **Connection Instructions**:
- Use one of the provided four-pin plugs for wiring.
- Extend short wires as necessary to reach the OSDP reader module.
- Utilize green and white twisted pair wires (minimum 22 AWG).
- Cut wire to a length sufficient to reach from the iDFace to the OSDP reader module, allowing 30 cm extra.
4. **Wiring Connections**:
- Connect green wire to the blue iDFace wire.
- Connect white wire to the blue and white iDFace wire.
- Connect red and black wires to a 12V DC power supply (2 amps required).

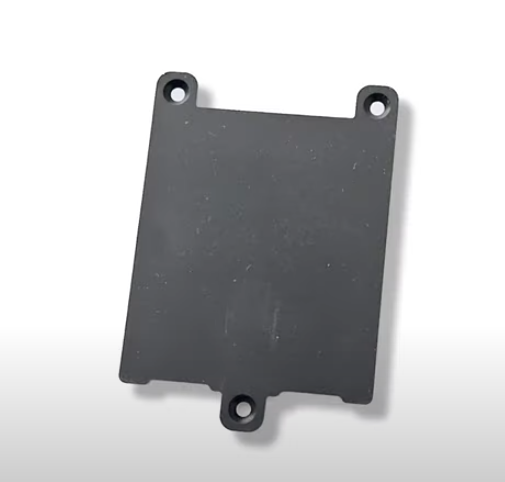

5. **Mounting**: Close the unit with the provided cover and follow mounting instructions.

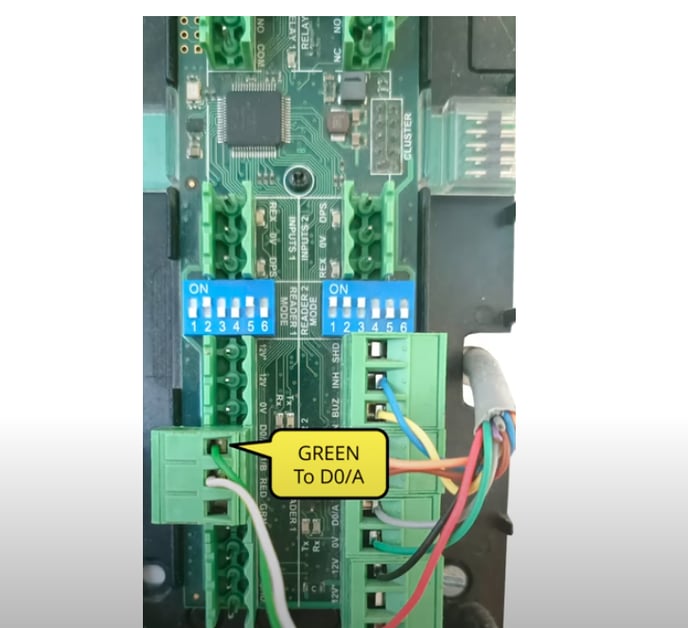

6. **Wiring to OSDP**: Wire green to the D0/A terminal and white to the D1B terminal on the OSDP reader module.
7. **Dip Switch Configuration**: Set the reader port dip switch to 010010 for OSDP mode.
8. **Next Steps**: Setup the iDFace using the OMNIA software.
