      Replacing an Antenna Reader terminal with a iTRT or iTRT2 in AmanoNet

      Before stating make sure your new hardware is installed.

      (Note* When replacing an Antenna reader terminal with an iTRT or iTRT2 you must replace the reader)

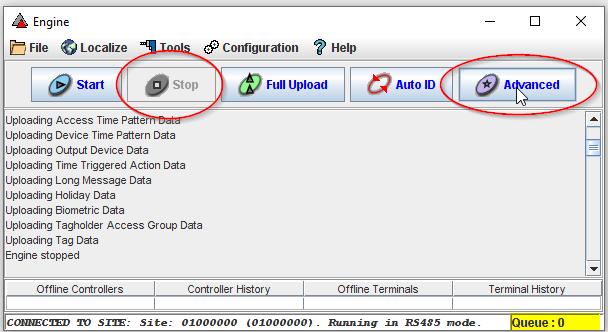

      Open the Engine.exe and select stop. Then Select Advanced

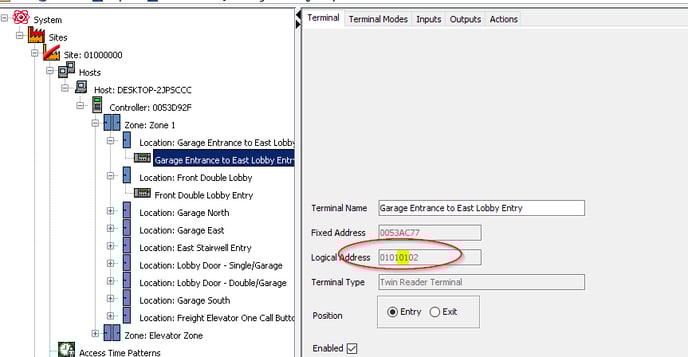

      Find the Controller LA locate the Reader terminal you would like to replace. Open Access and search for the terminal that will be replaced then select.  Next to Logical address take note of the highlighted section below. (Example 01)



      Type START AUTOID (Logical Address of Controller)(Example 01) Then Select Enter

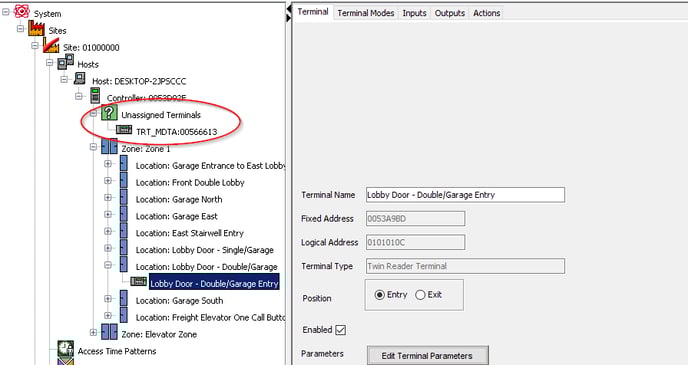

      To see the Unassigned Terminals close and reopen Access.exe

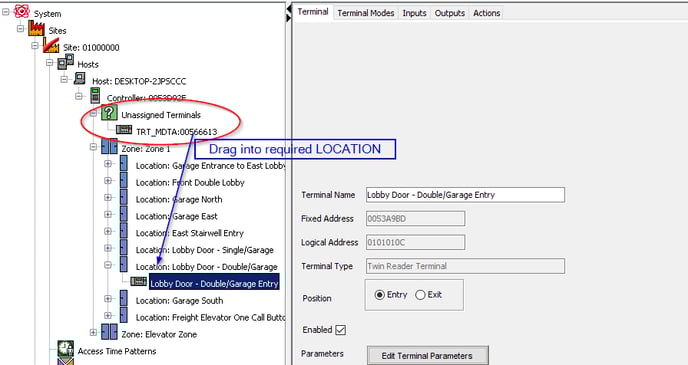

      Now that you see the Unassigned Terminals Click and drag the device into the required location.
