Steps to install an IP iTRT into AmanoNet
With the Engine Stopped
Open NetDiscovery.exe
Find the Controller the iTRT will be installed to via IP address of the Controller
Find the iTRT needing to be installed via the IP address of the iTRT

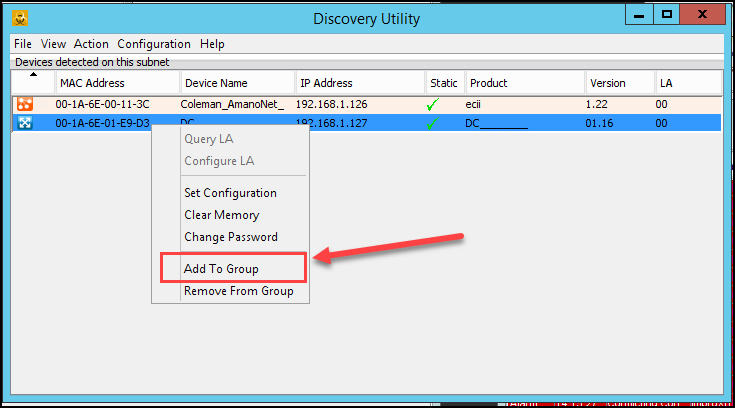

Highlight the iTRT, Right Click and select, Add to group

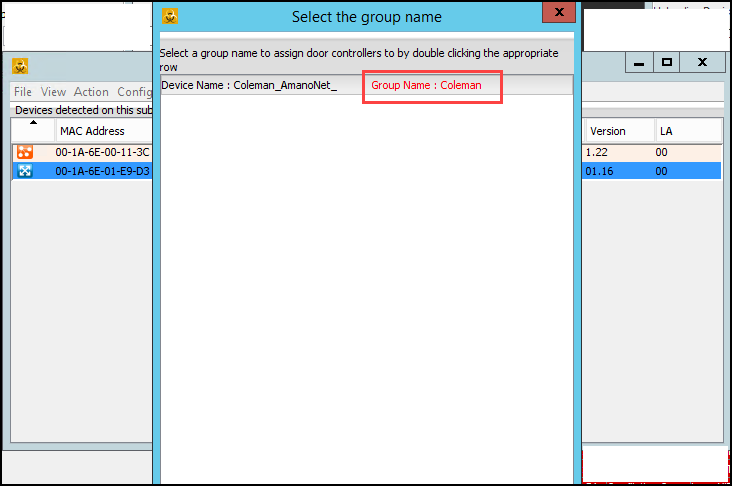

Double click the controller group name, it will be in red

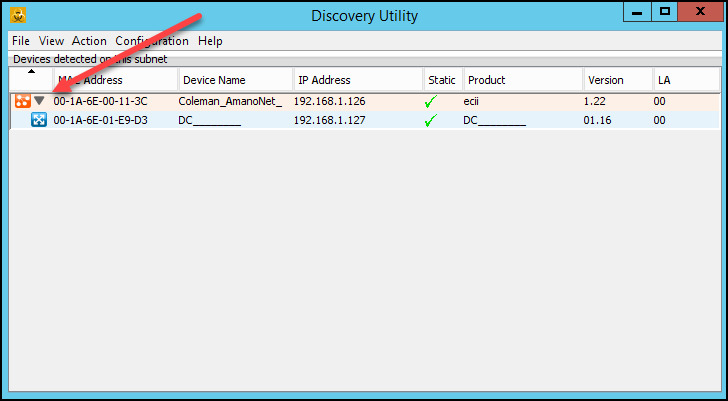

You will then notice a triangle next to the Controller Icon, this represents the iTRT is now grouped to the Controller

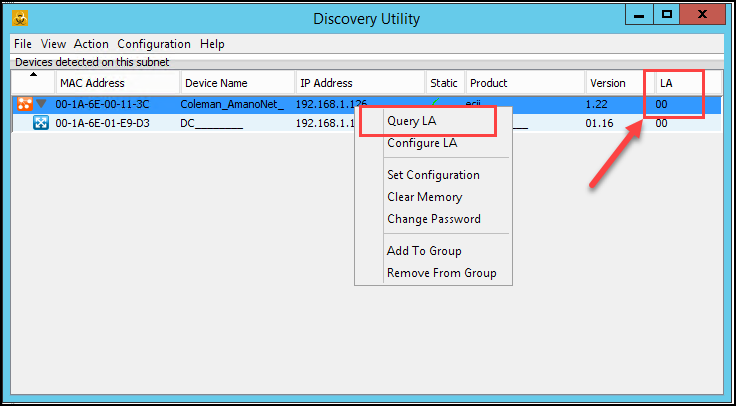

Highlight the Controller, Right Click, Select Query LA

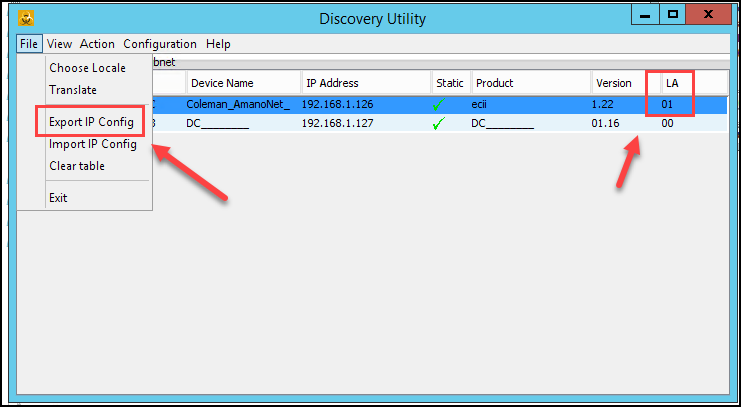

Highlight the Controller, select file, then select Export IP Config
A Save Window will appear showing the location and name of the Export File being Discovery.txt, this will save by default in the AmanoNet Folder

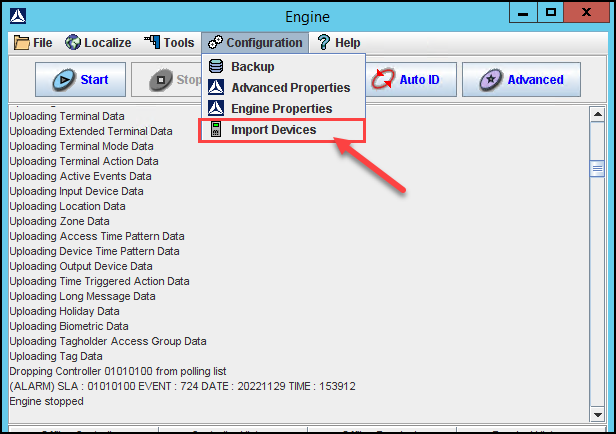

Go to the Engine, Select Configuration, then Select Import Devices

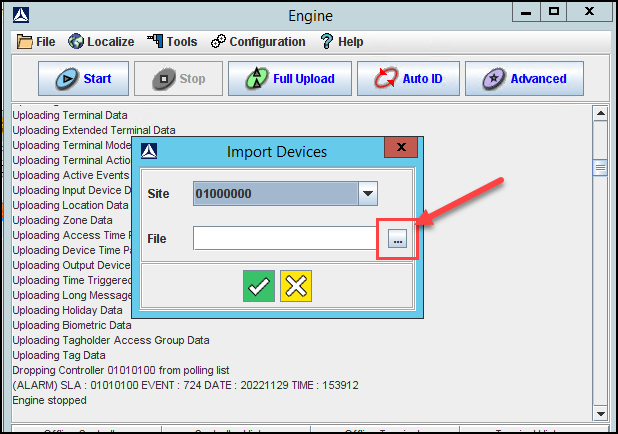

Import Devices window will appear, use the browse button to search for the Import File

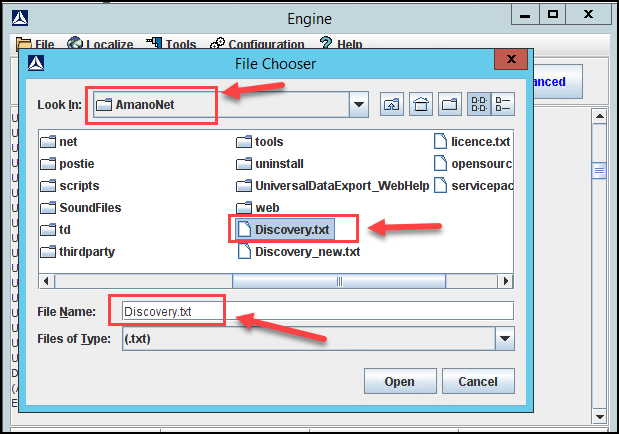

A File Chooser window will appear, search that window for the Discovery.txt file that was created during the export.

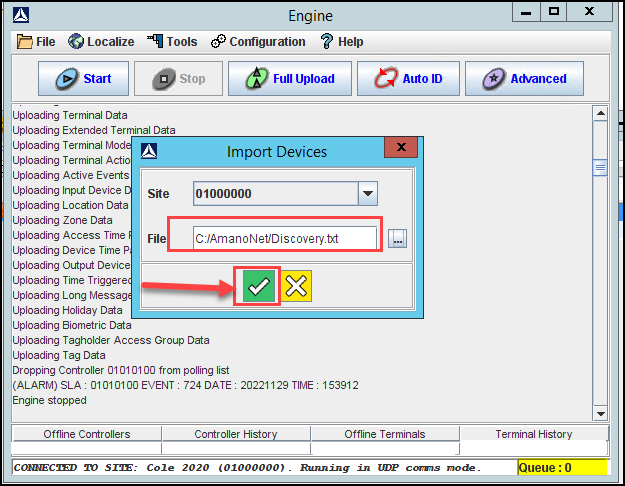

After selecting the discover.txt file, select the check box

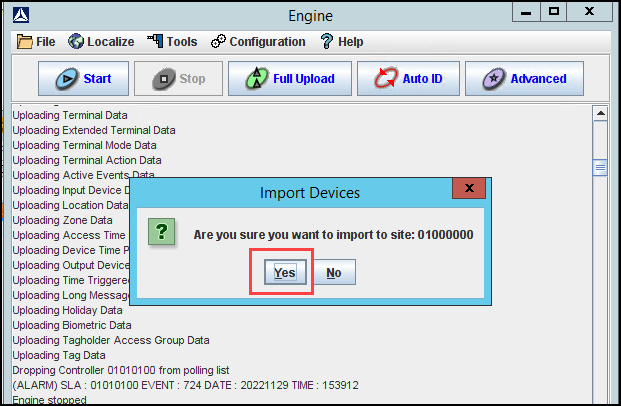

Select Yes to import the file

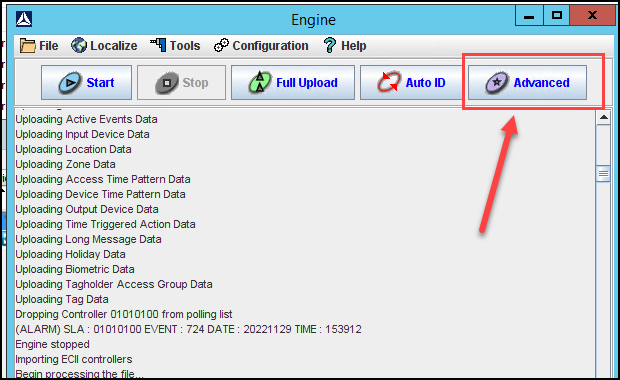

In the Engine, Click Advanced, Type start autoid XX, XX = the logical address of the controller

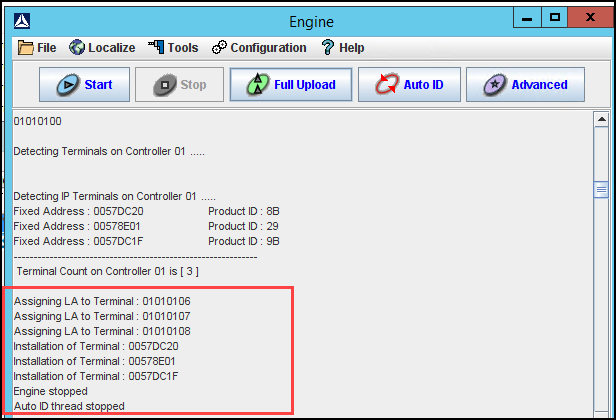

Auto ID will complete you will see the new terminals listed in the Engine
Go into Access, Collapse the Site Tree, Press F5 on the keyboard, this refreshes the Access Window

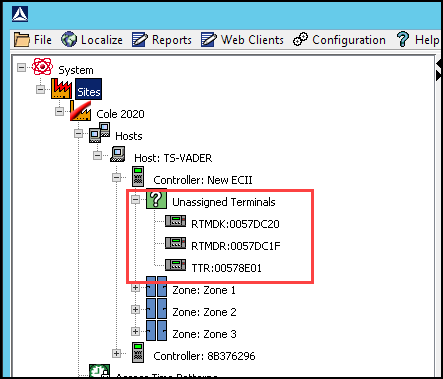

Expand the Site Tree, Expand the Controller Tree, You will see newly installed terminals as Unassigned Terminals
You Have now installed the IP iTRT
