      Step by Step Install of OMNIA 4.6.5 with 2019 SQL Express and SQL Management Studio.

      Installing OMNIA,2019 SQL Express, and SQL Management Studio

      This is a step by step guide to installing OMNIA 4.6.5 and SQL 2019 Express. Please ensure you are logged in the PC/Server with Local Administrator Rights. This installer will not fail with proper permissions and being run as administrator.



      Download the OMNIA.iso from PMTronics

      pmtronics.com/download-center/

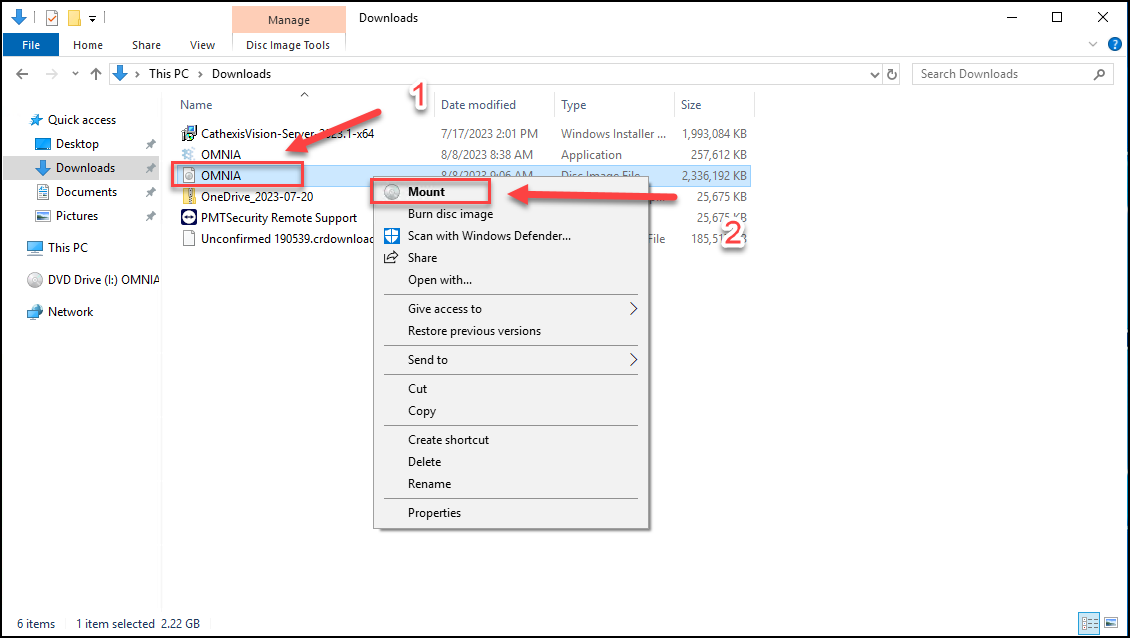

      1. Select the OMNIA.iso

      2. Mount the OMNIA.iso

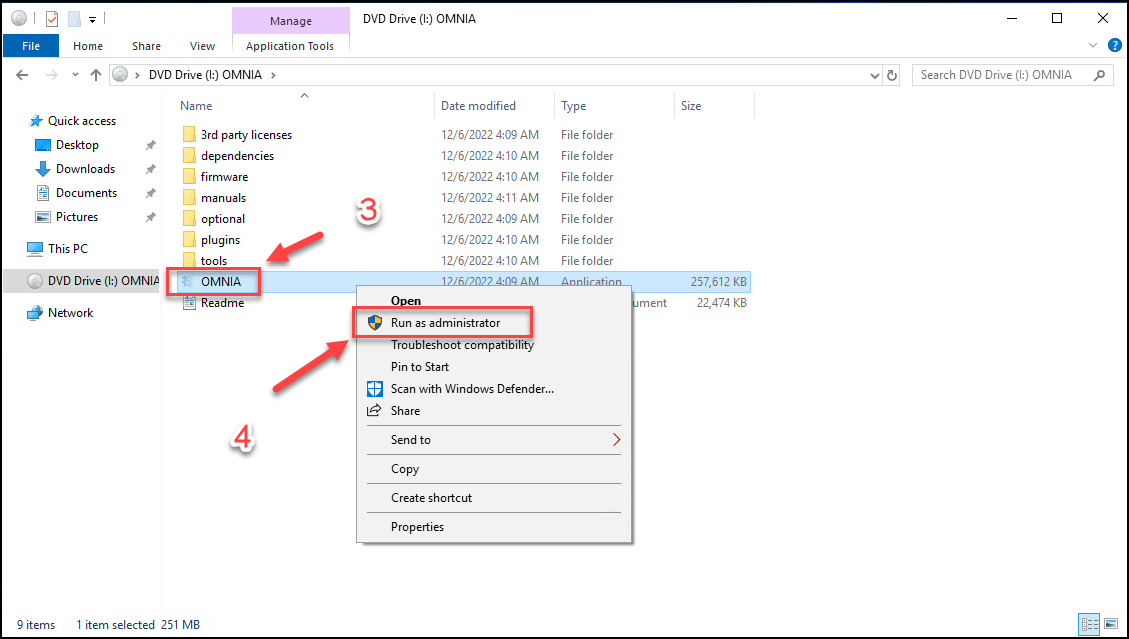

      3. Right Click OMNIA
      4. Select Run as Administrator

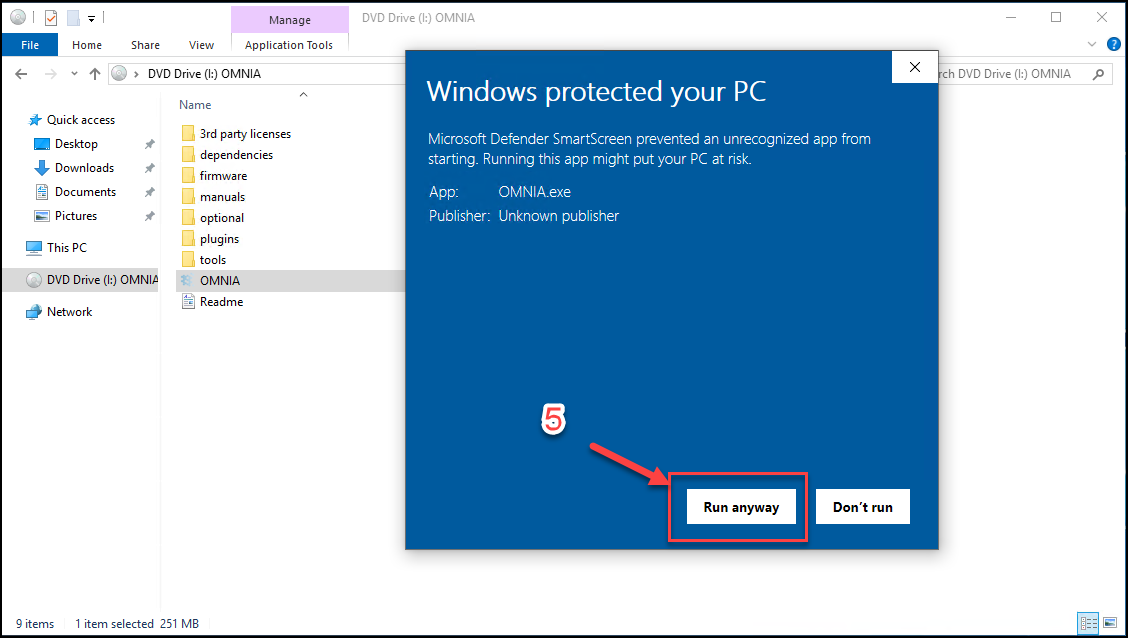

      5. Select Run Anyway if Windows Prevents Installer from running

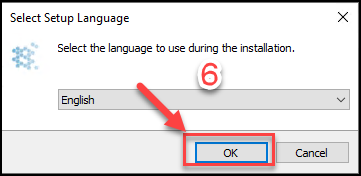

      6. Select Language of Choice, Select OK

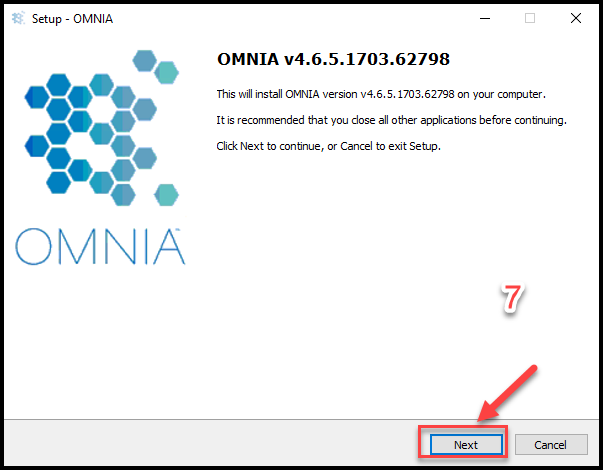

      7. Select Next

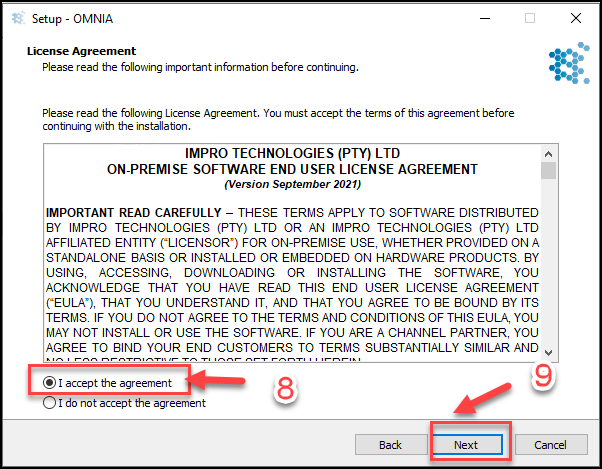

      8. Accept the Agreement
      9. Select Next

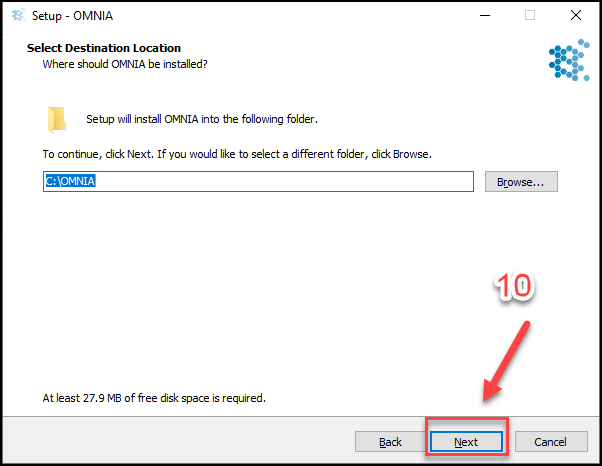

      10. OMNIA Installation location, Select Next

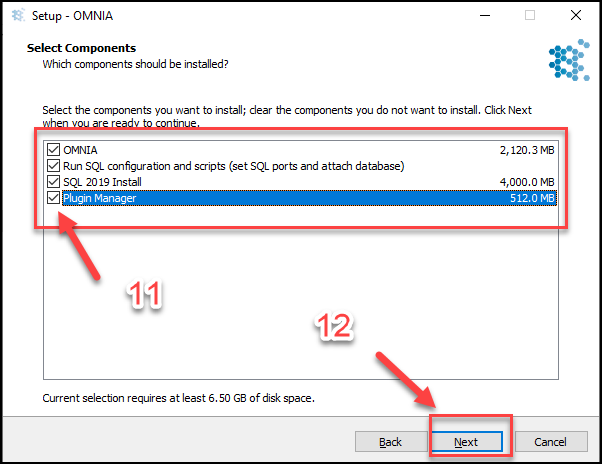

      11. Select the Components to Install
      12. Select Next

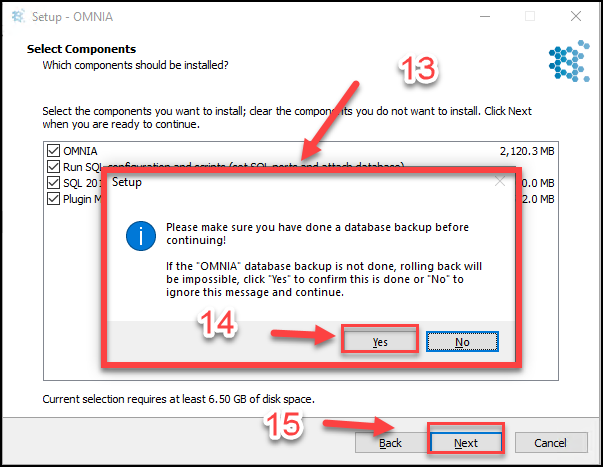

      13. Information Dialogue Box Appears
      14. Select Yes
      15. Select Next

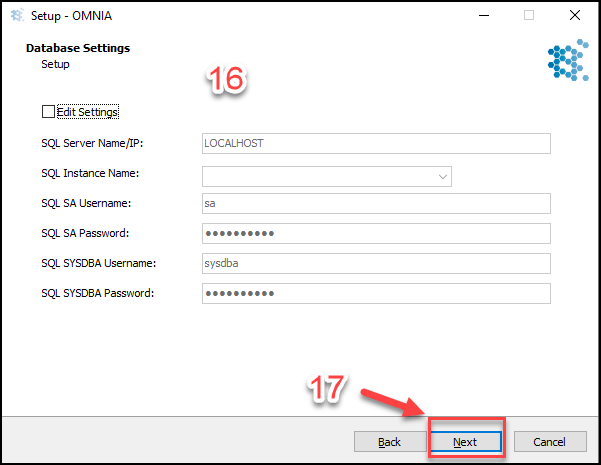

      16. Edit Settings Page, only edit settings if needed. Select Edit Setting Box to make Changes. OMNIA will search the localhost automatically for a SQL instance name with a database named OMNIA
      17. Select Next

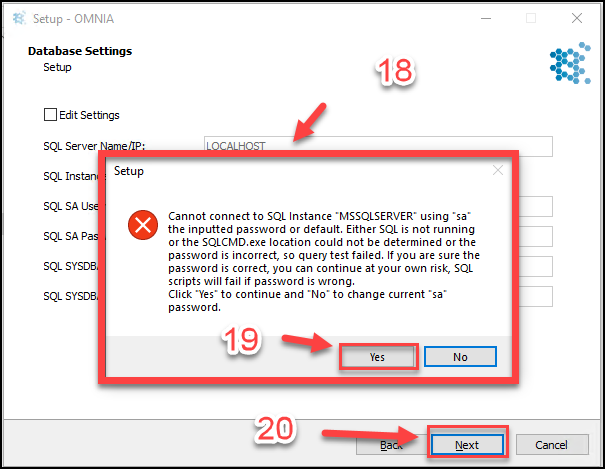

      18. Error Window will appear, this error is normal
      19. Select Yes
      20. Select Next

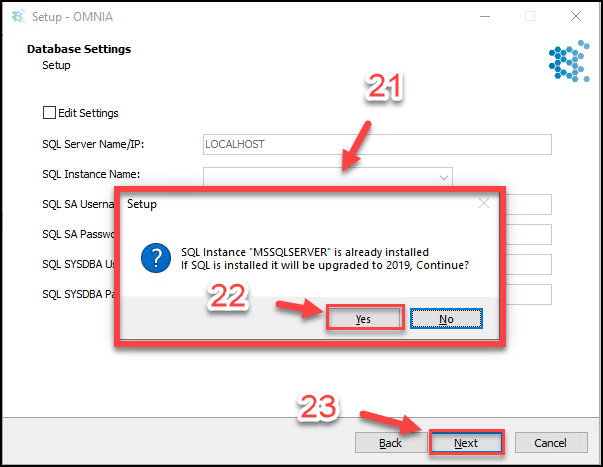

      21. Information/Question Window will appear
      22. Select yes
      23. Select Next

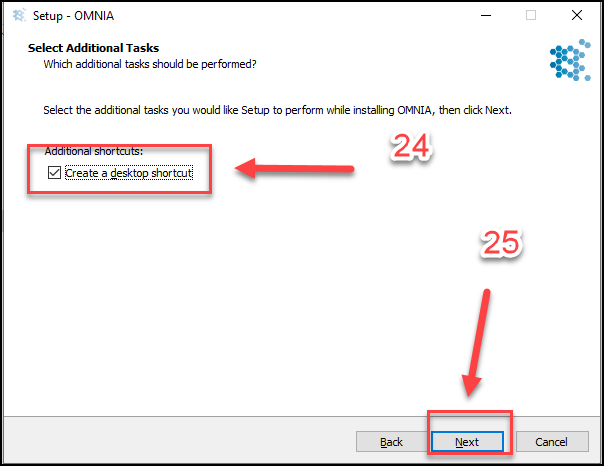

      24. Select if Desktop Shortcut is needed
      25. Select Next

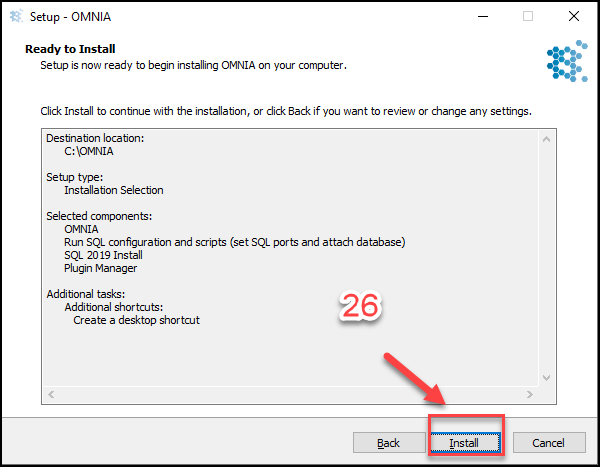

      26. Select Install

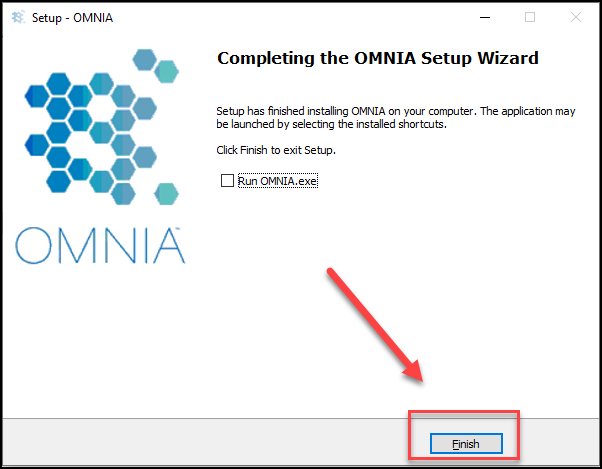

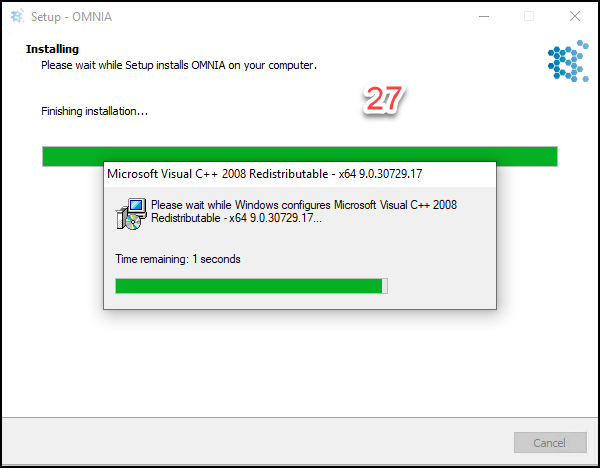

      27. Installation Process Continues, Select Finish When Completed

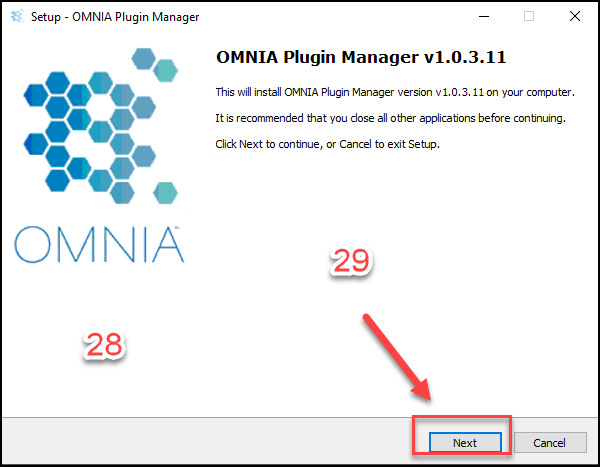

      28. After the OMNIA installation completes, The OMNIA Plugin Manager Installation will begin if selected at beginning of installation.
      29. Select Next

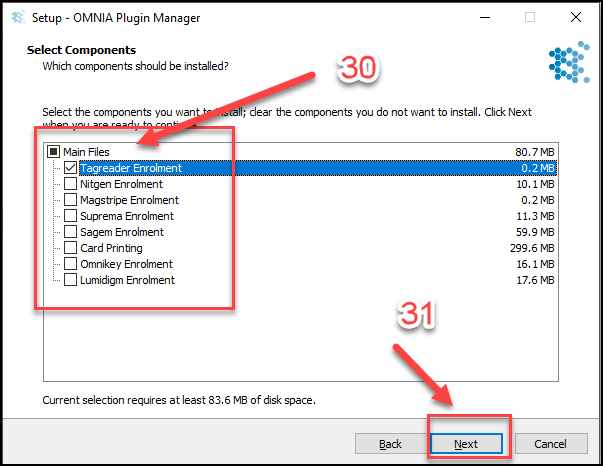

      30. Select the Components to install
      31. Select Next

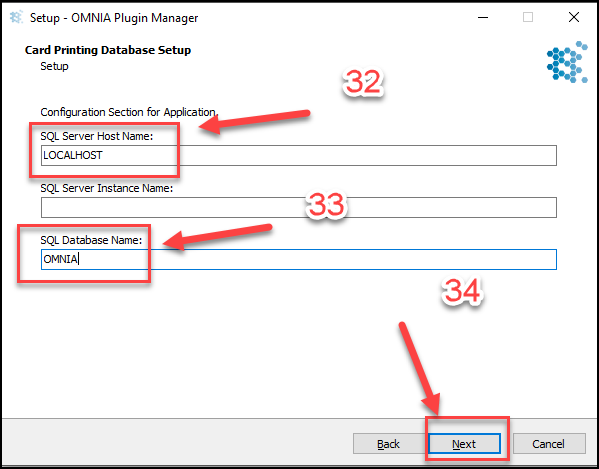

      32. If SQL is not running local, change LOCALHOST to IP address of SQL.
      33. Change SQL Database Name to OMNIA
      34. Select Next

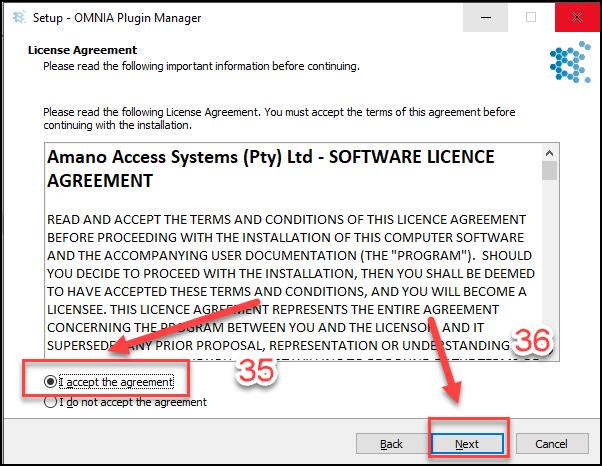

      35. Accept the Plugin Manager License Agreement
      36. Select Next

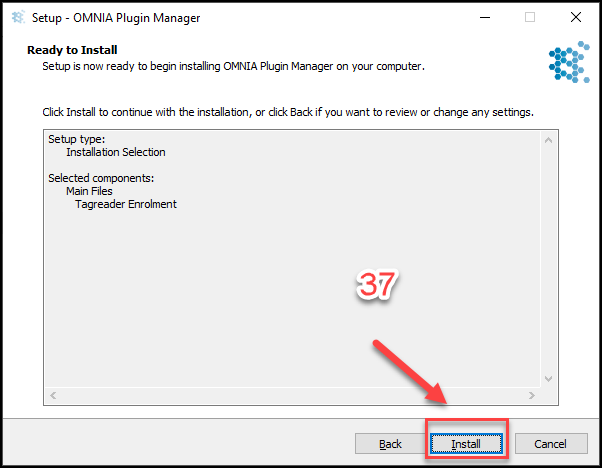

      37. Select Install

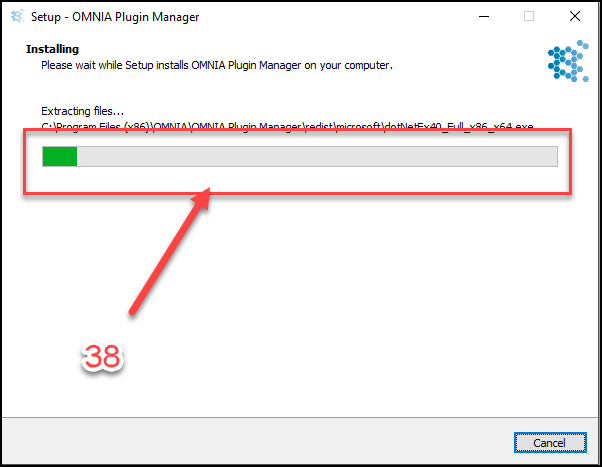

      38. Plugin Installation Continues

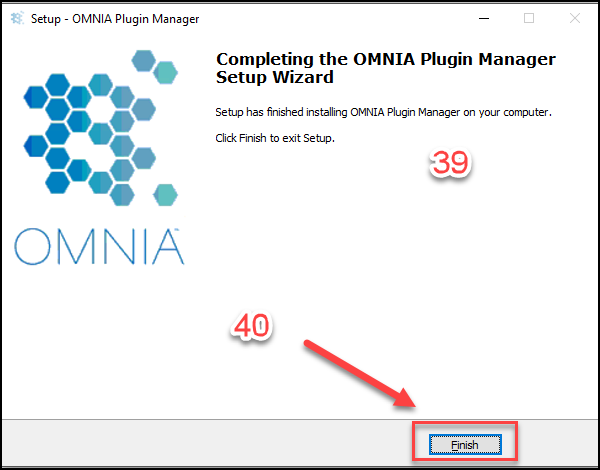

      39. Plugin Manager Installation Completed
      40. Select Next

      41. SQL Server Management Studio will need to be downloaded and Installed from Microsoft. This is needed for Database tasks such as Backups.
      42. Select the Windows Start Icon, SQL 2019 will be a  new installation
      43. Select the newly installed folders drop down arrow
      44. Select the SQL Server 2019 Installation Center
      45. A separate SQL Installation Center window will open
      46. Select Installation
      47. Select Install SQL Server Management Tools, this will open a download link in a web browser.

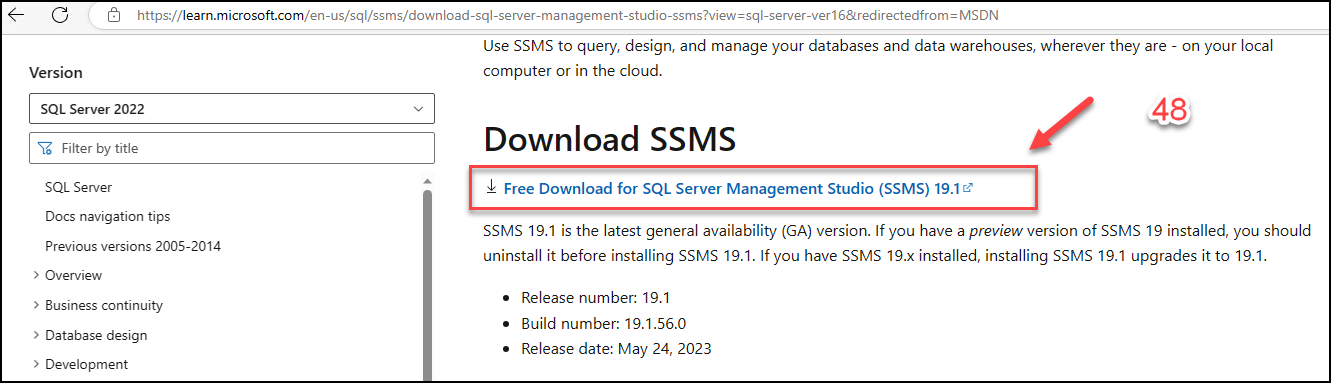

      48. Select the Management Studio Install download link.

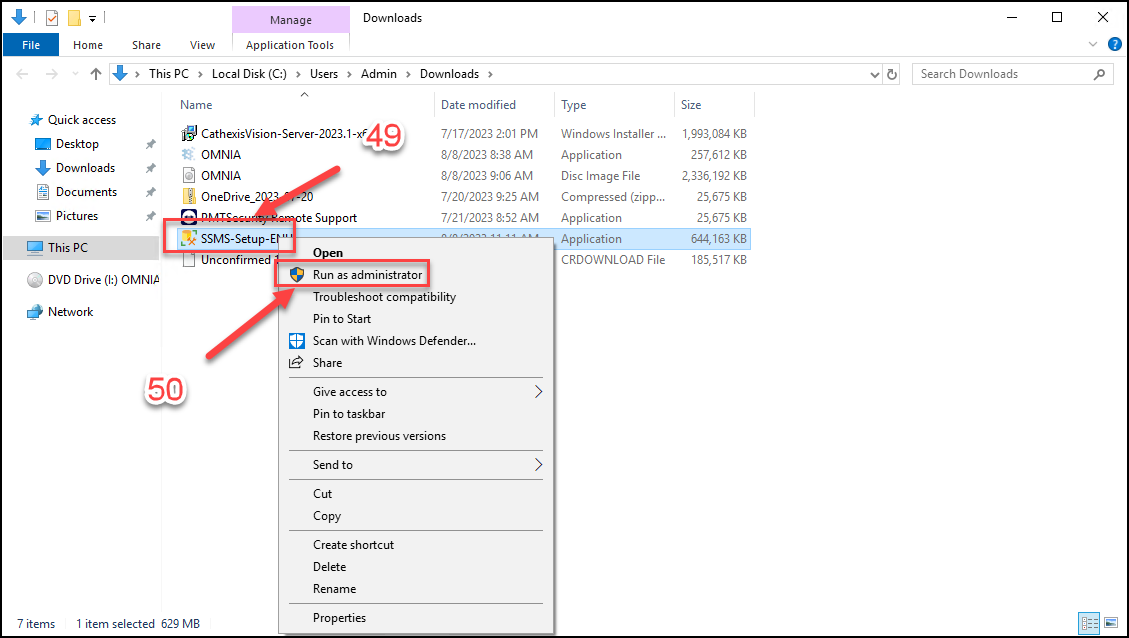

      49. Right Click the SSMS Installer
      50. Select Run as Administrator

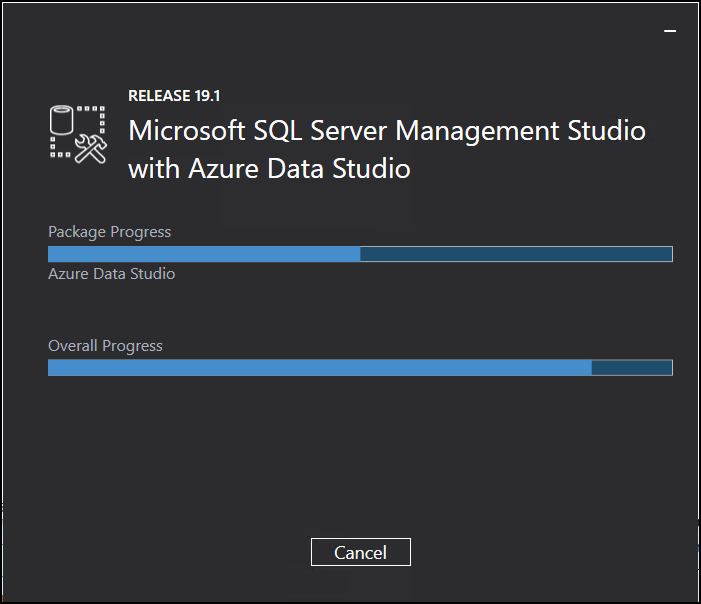

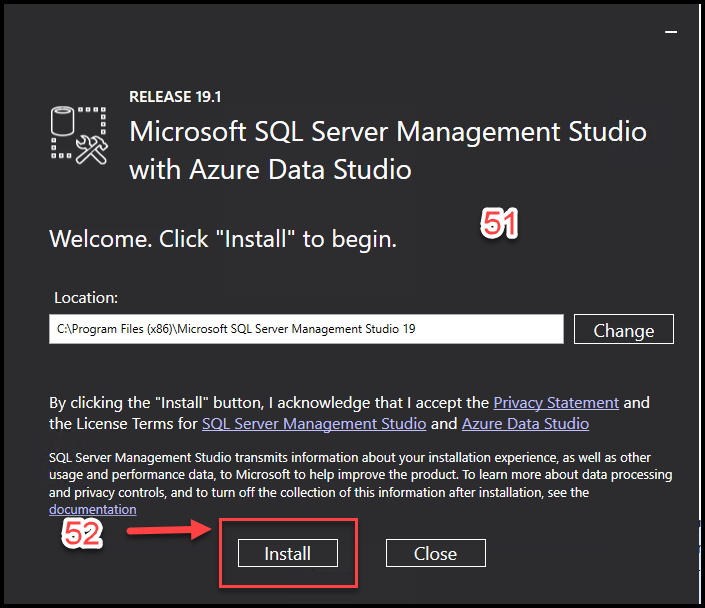

      51. Management Studio Installer Window Appears
      52. Select Install

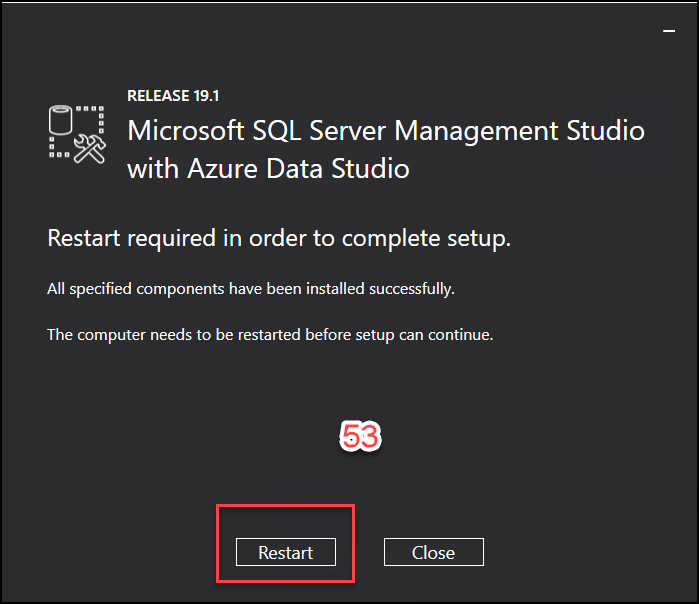

      53. Select Restart

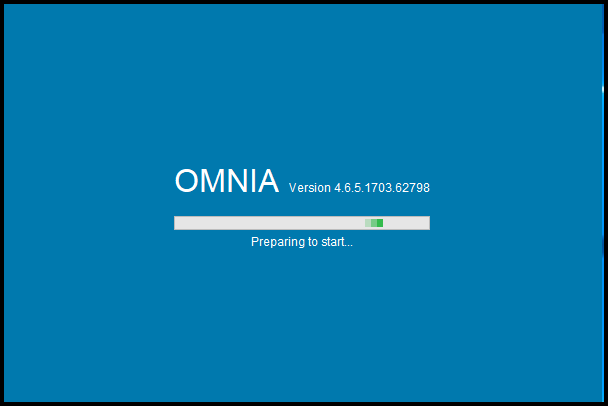

      54. Installation is complete, After the reboot, launch OMNIA from the Desktop Shortcut.
