      Emergency Mode On The Dashboard

      Emergency Mode On The Dashboard

      Print

      Emergency Mode On The Dashboard

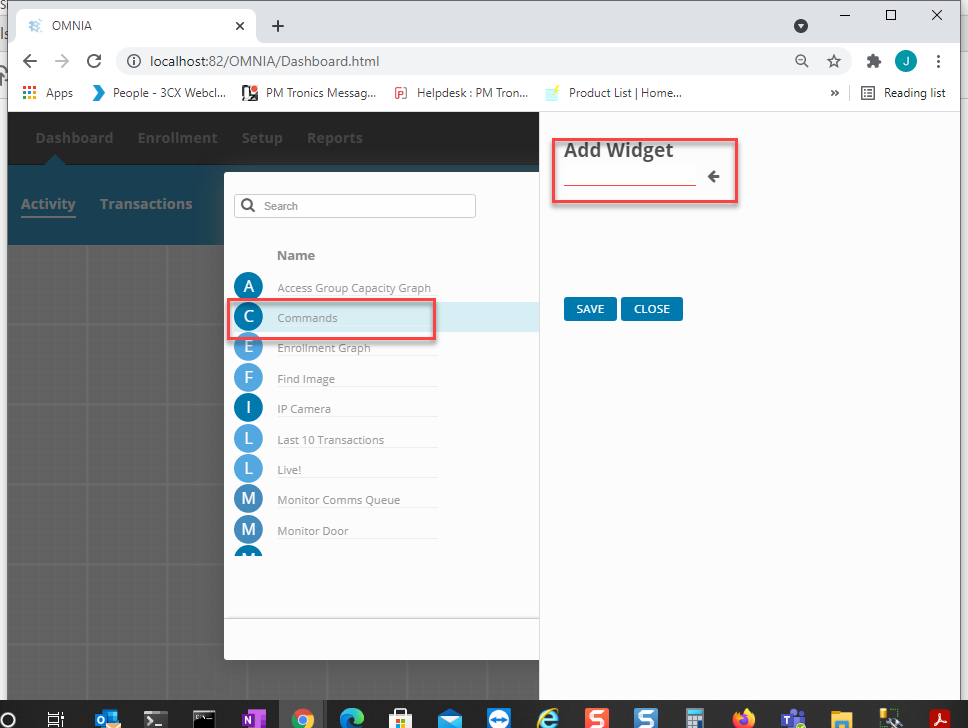

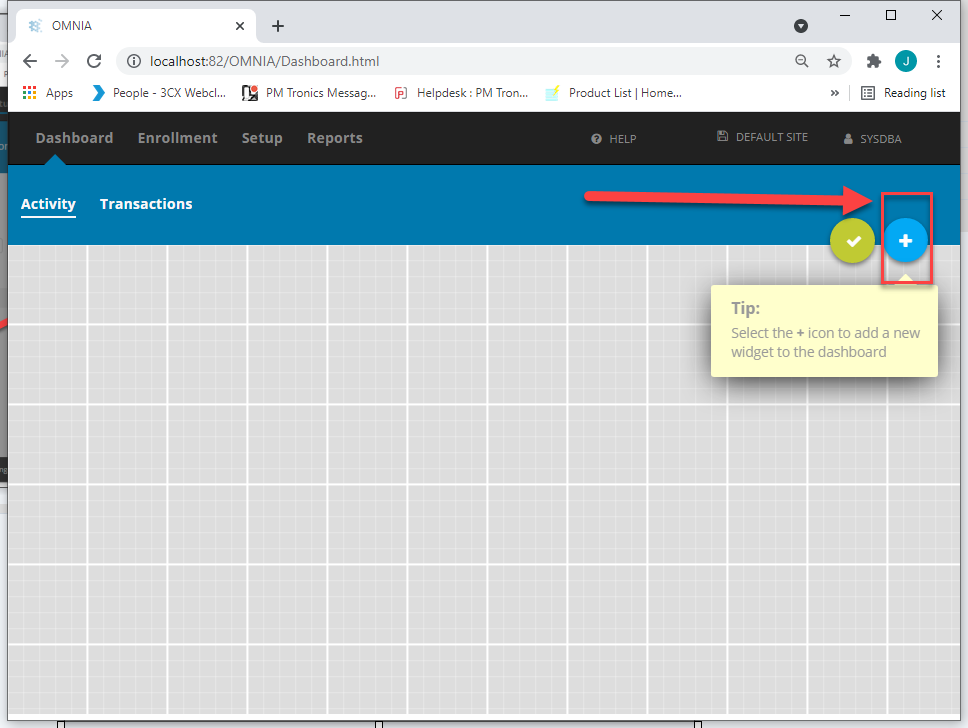

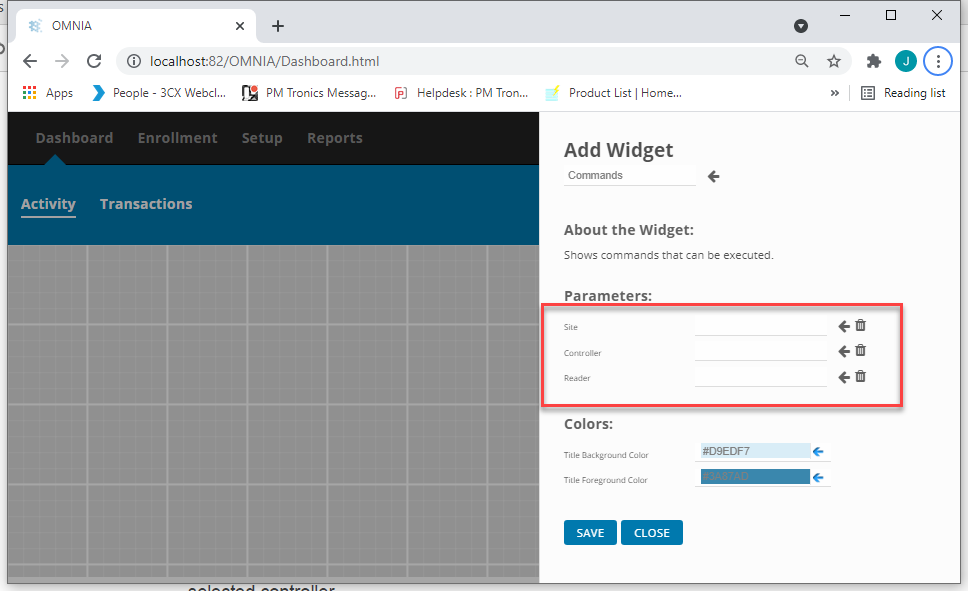

      Add a command widget to the dashboard.





      • Choosing site will activate Emergency mode across all controllers
      • Choosing Controller will activate Emergency mode only on the selected controller
      • Choosing Reader will activate Emergency mode only on the selected reader.



      • Click Save

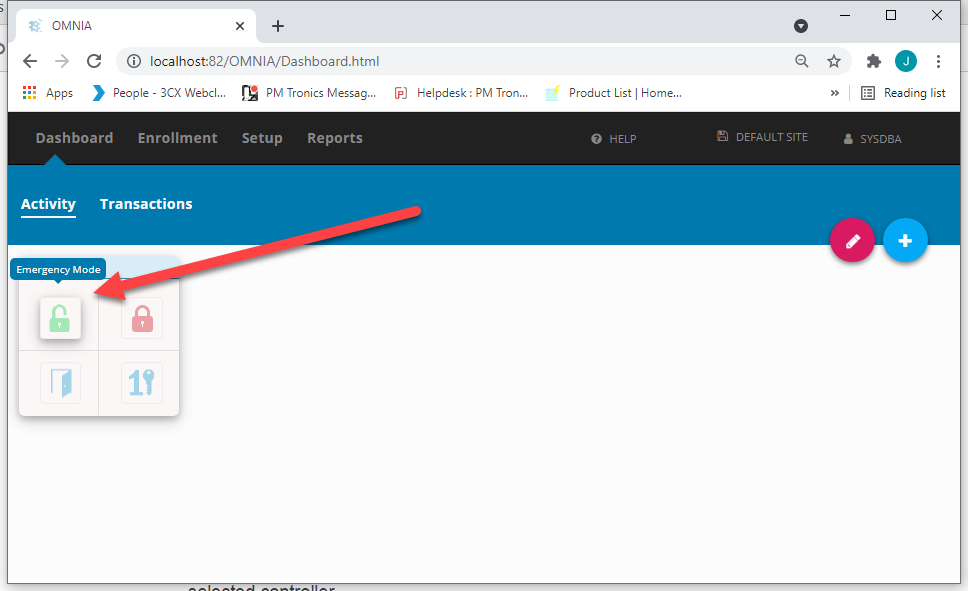

      • The widget will display as shown below




      You will need to Edit the Behavior of the Emergency Mode in the Reader Profiles.

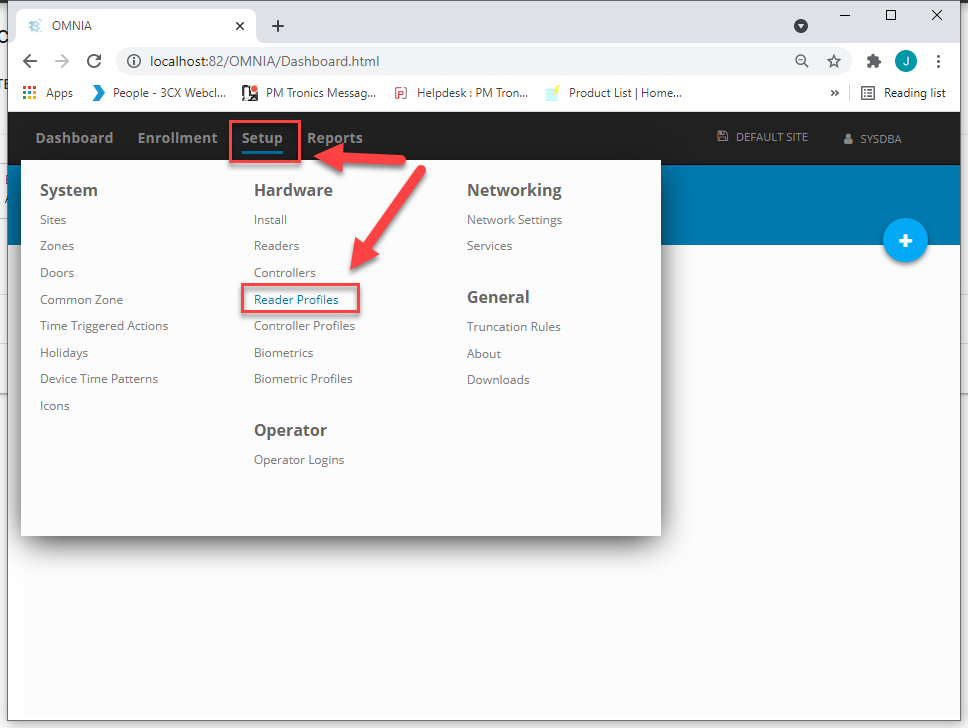

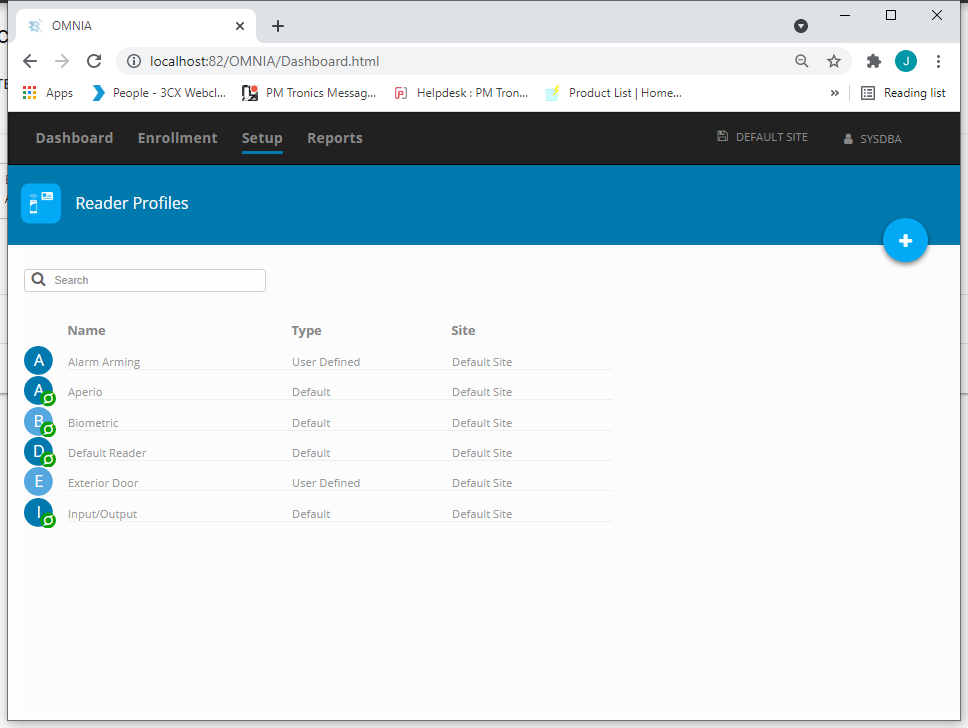

      • Go to Setup/Reader Profiles


      • Select the Reader Profile that will be affected by the Emergency Mode

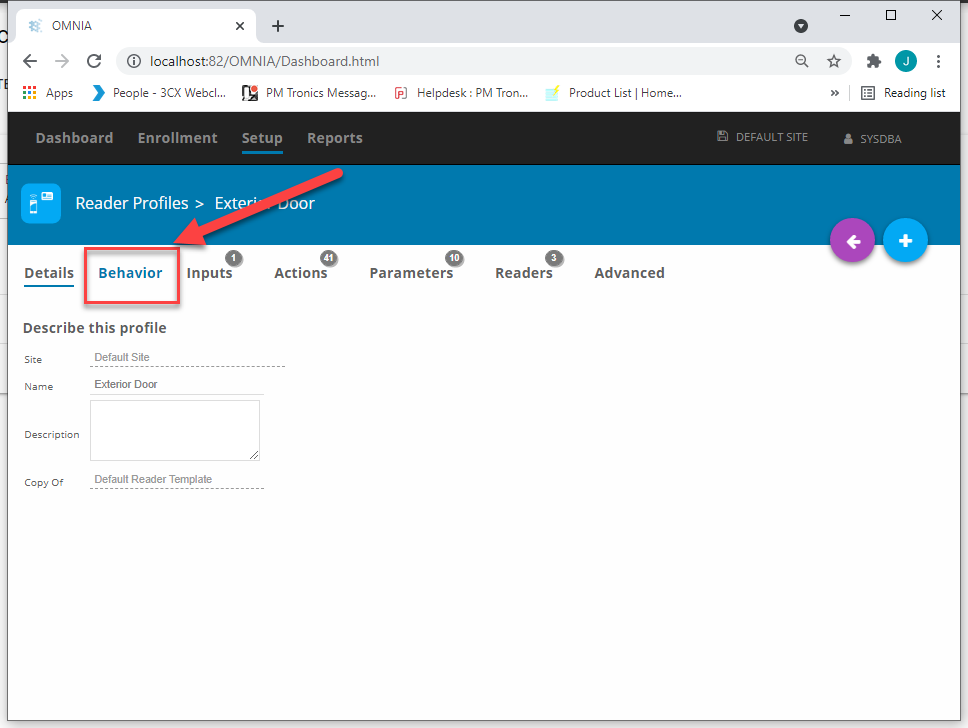

      • Choose Behavior

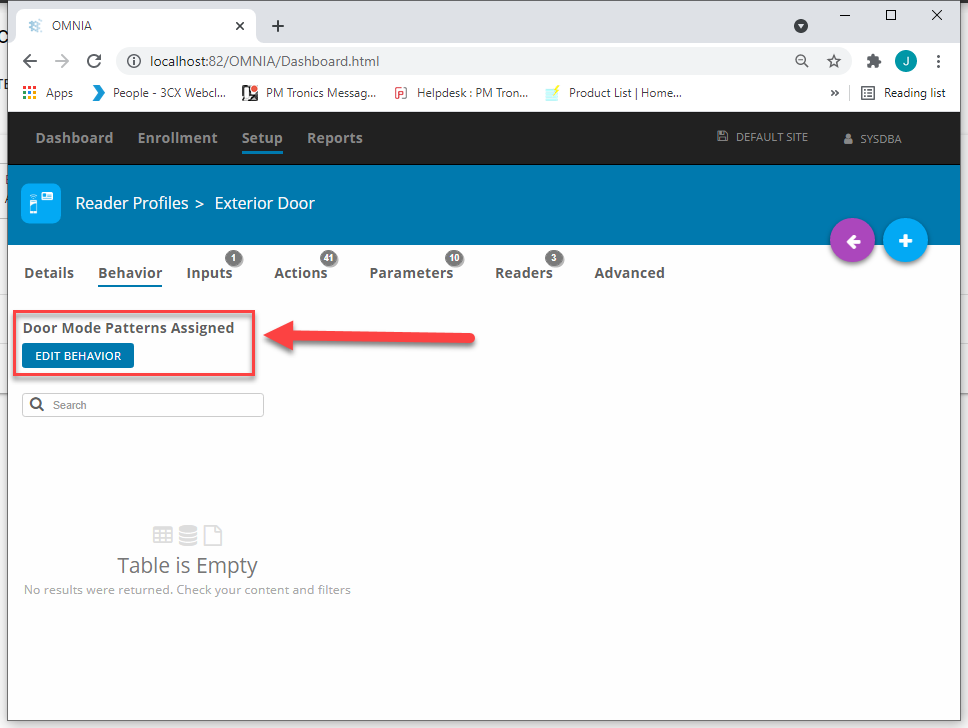

      • Select Edit Behavior

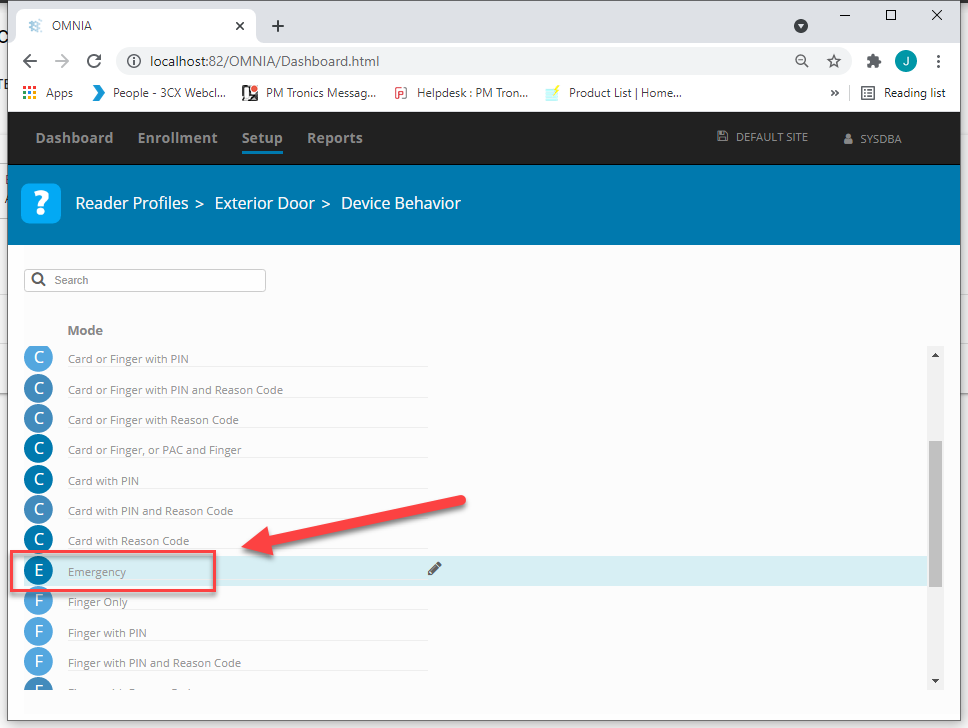

      • Scroll down to Emergency

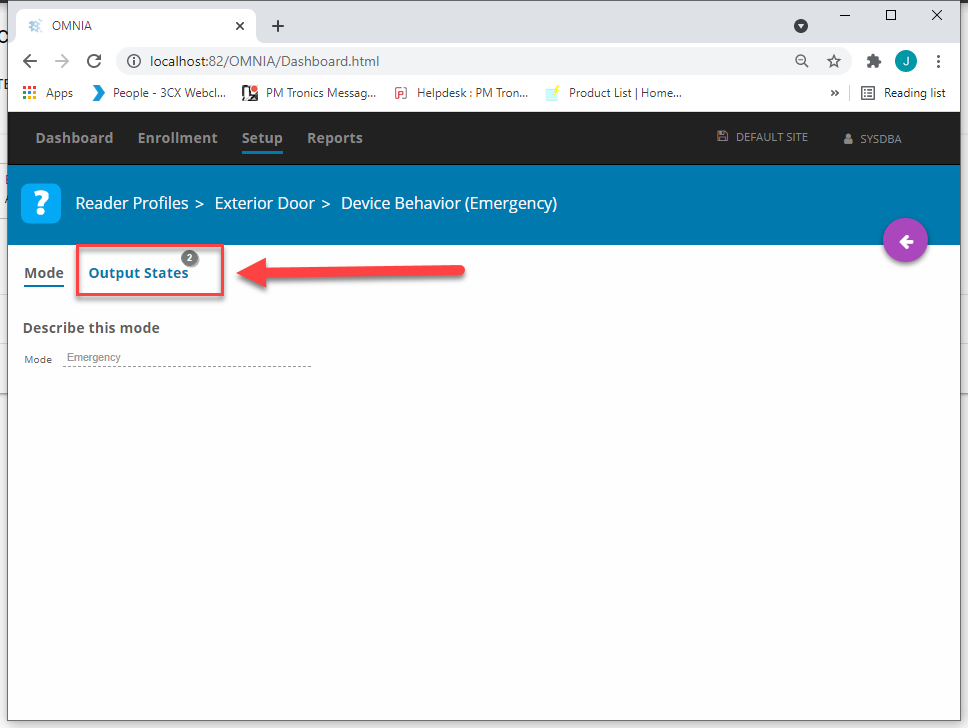

      • select output states

      • Select to either Drive or Not Drive Relay depending to lock type/lock action.

      • Select Save

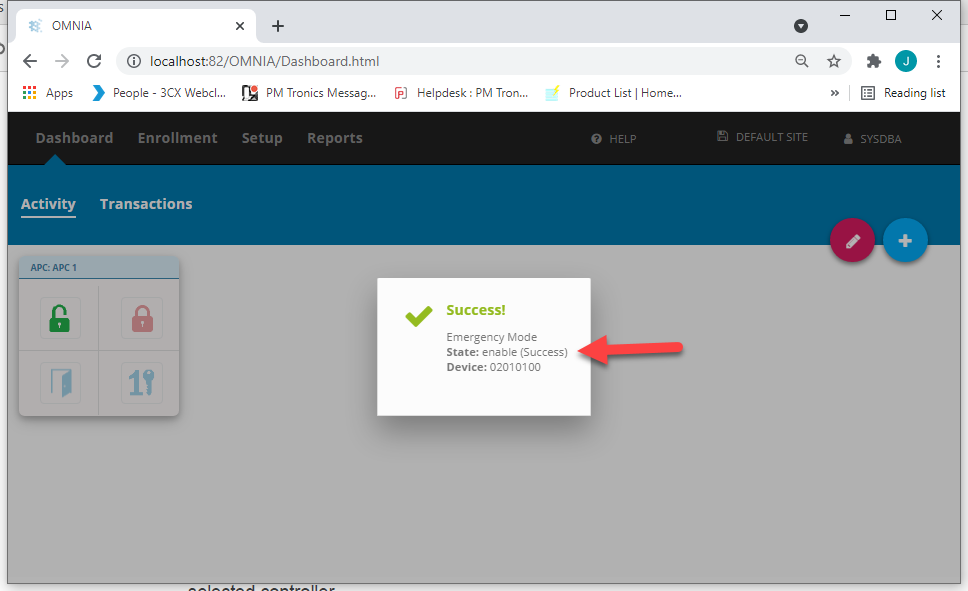

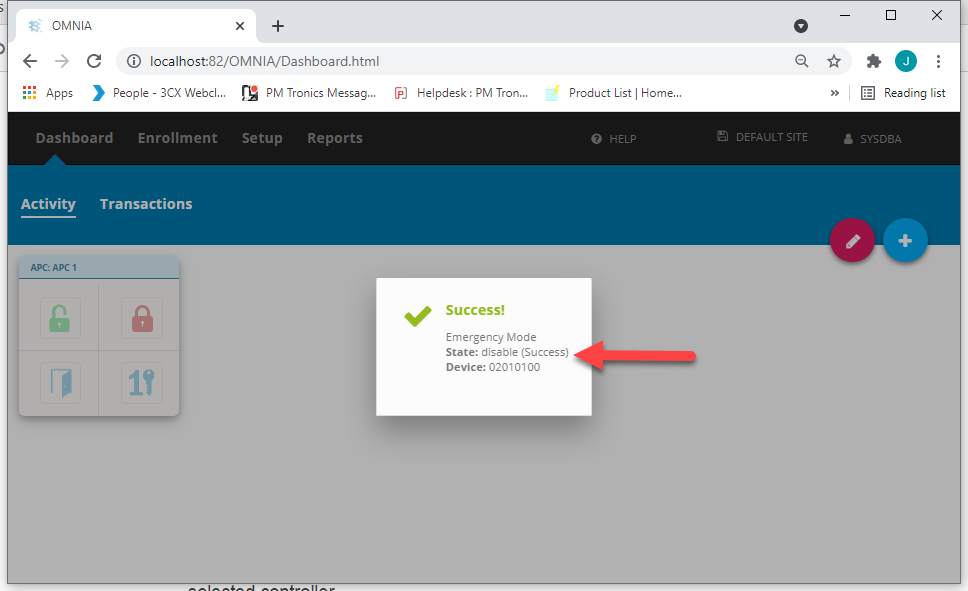

      Toggle Emergency mode from the Portal Dashboard.
