Create a Site Lockdown Input for OMNIA
Create a Site Lockdown Input for OMNIA
Print
Site wants a lockdown button installed
To Create an input that will lockdown the Site proceed as follows;
You will need to create an Action in the Controller Profiles, this action will affect all Terminals

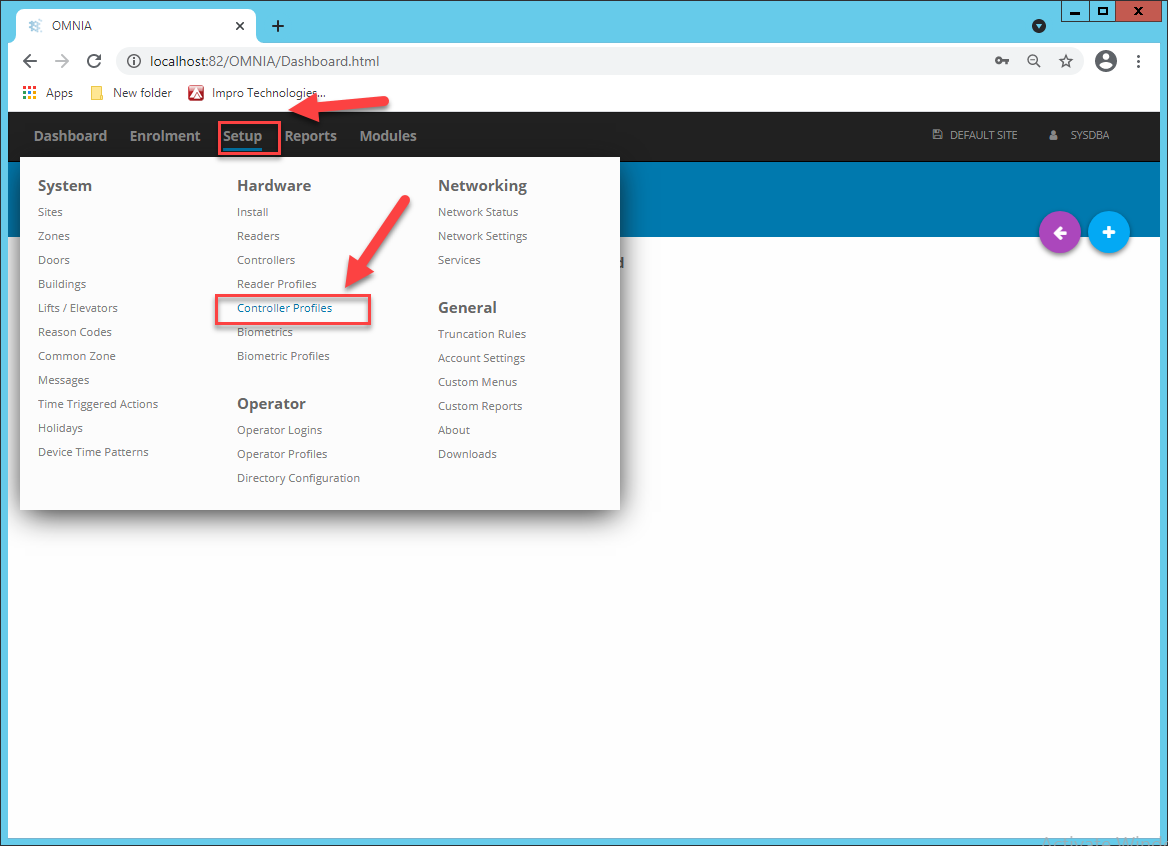

Go to Setup/Controller Profiles

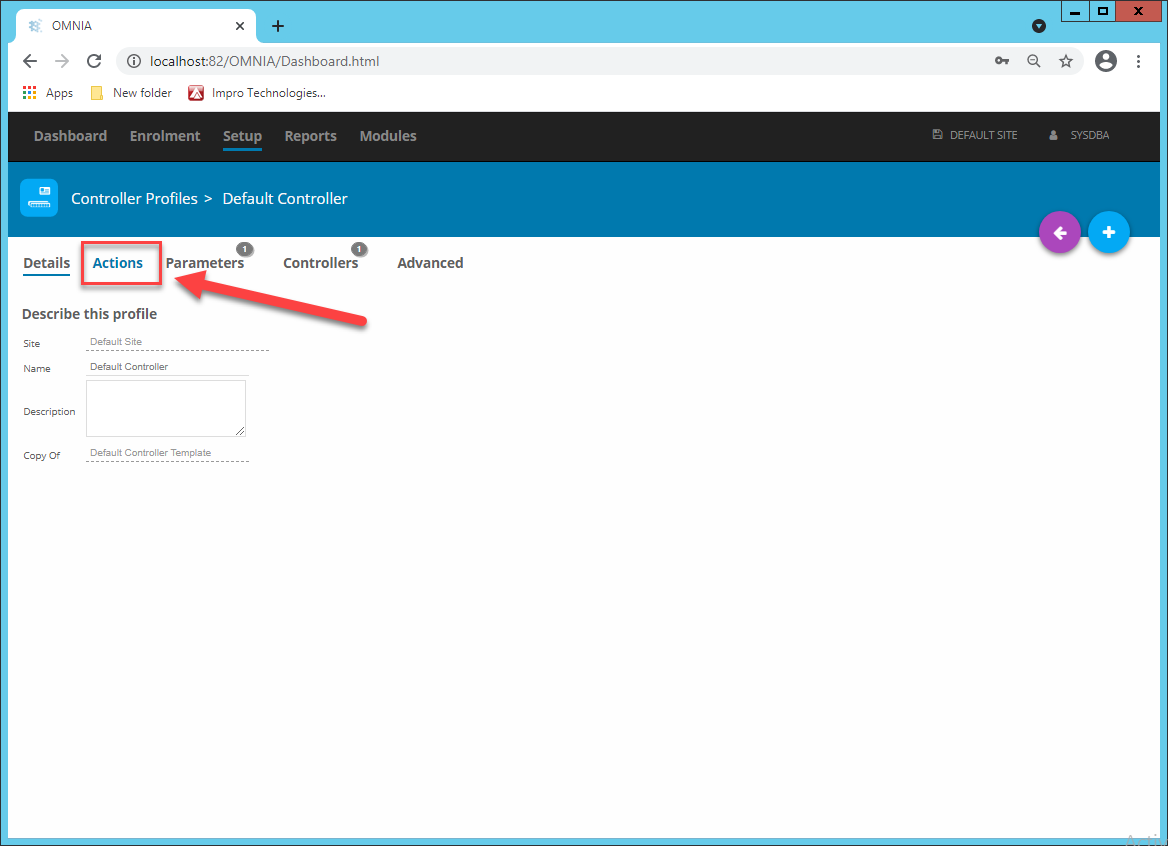

Go to Actions, then Add Action

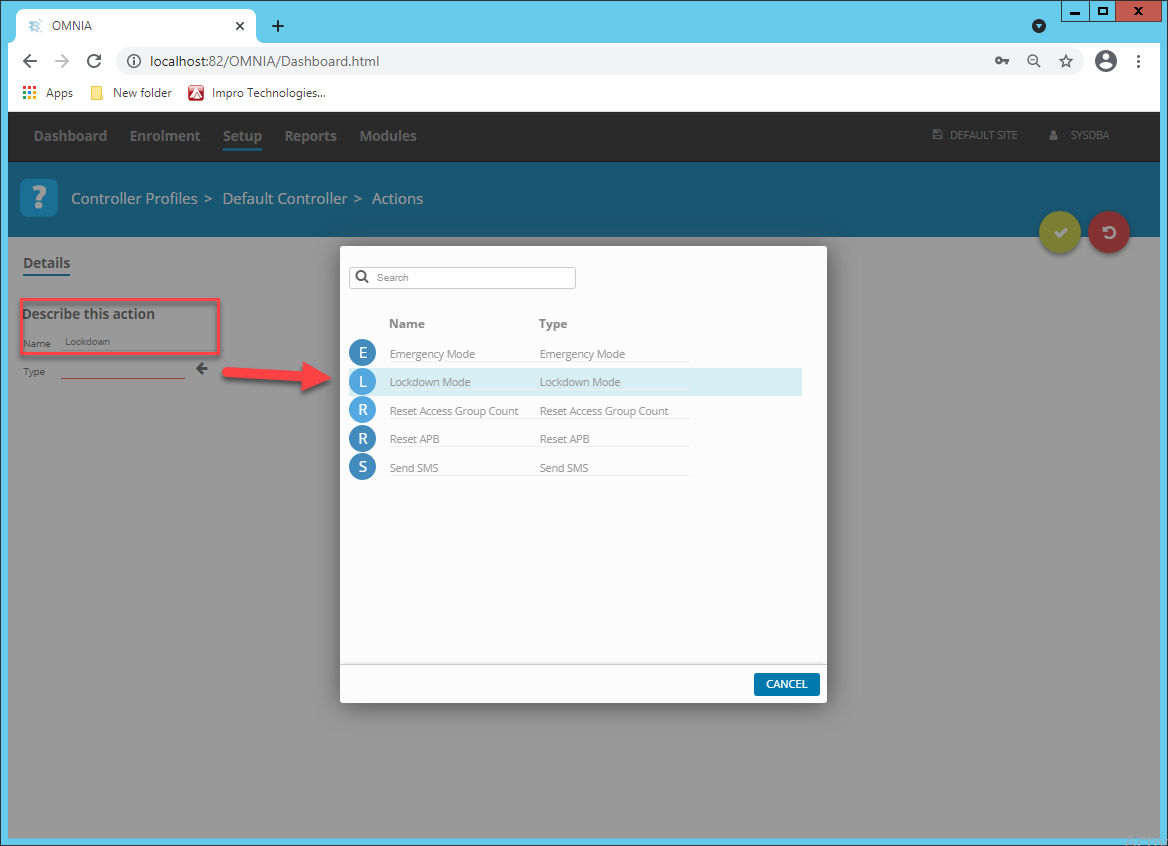

Describe the Action and Choose Lockdown Mode for the Type. Click the Enabled Radio Button, Do Not Choose a Time Pattern.
Now Create an Input in the Reader Profile where the Lockdown Input is wired to. Either Input 1 or Input 2 depending on where the wires land
Go to Setup/Reader Profiles/

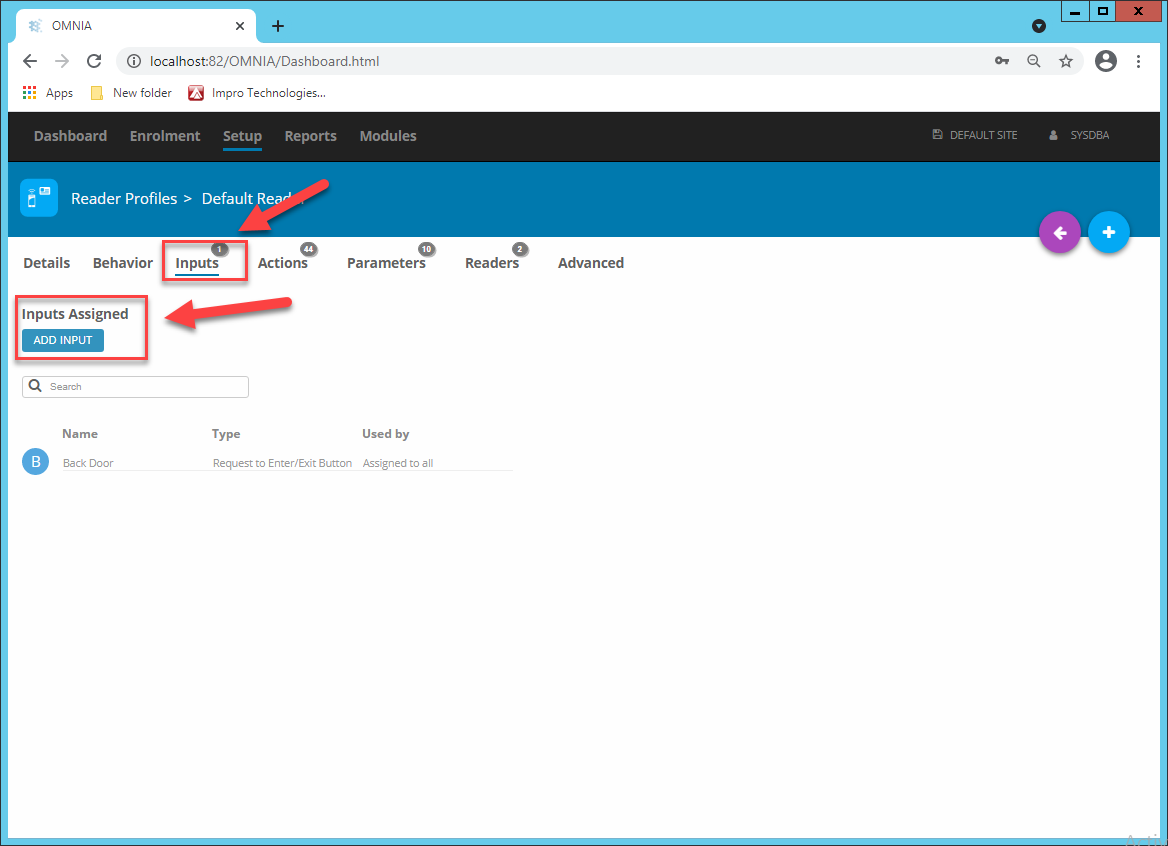

Once in the Reader Profile, select the Inputs tab, create new input

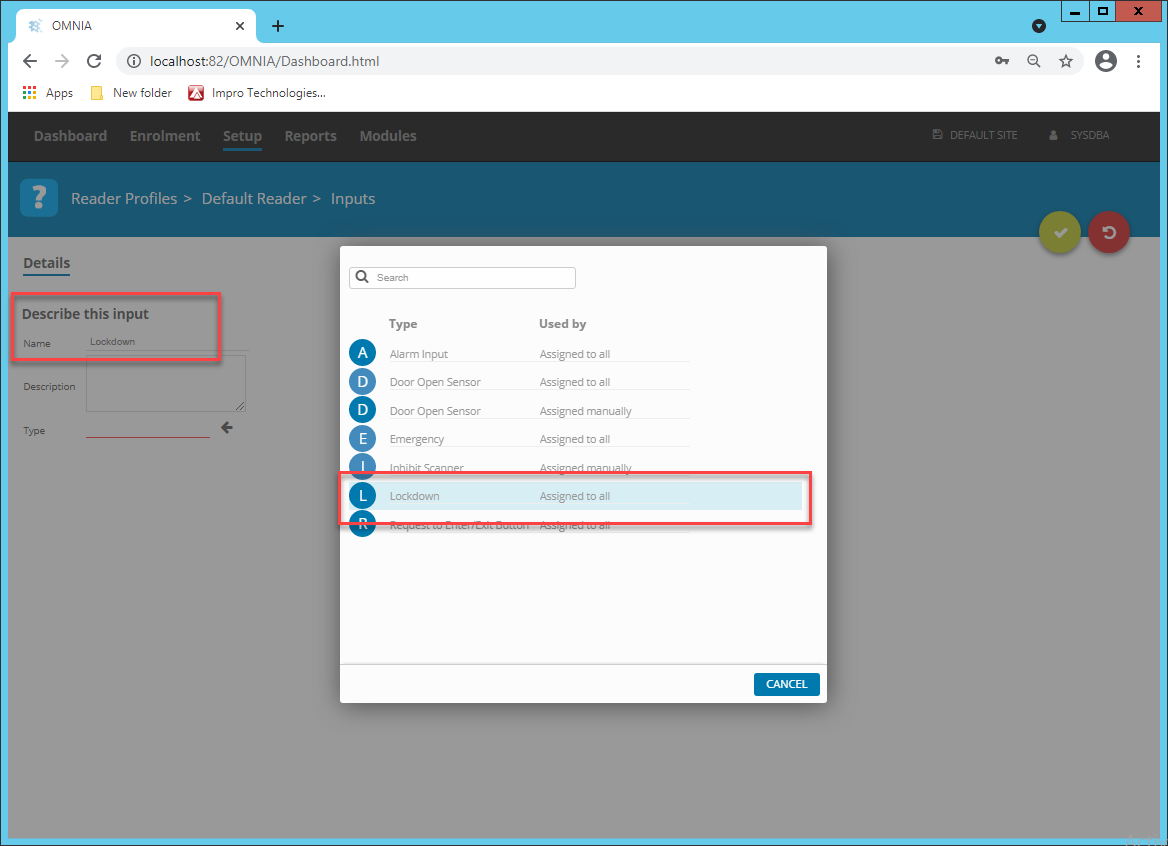

Name the Input Accordingly, choose Lockdown as the Type

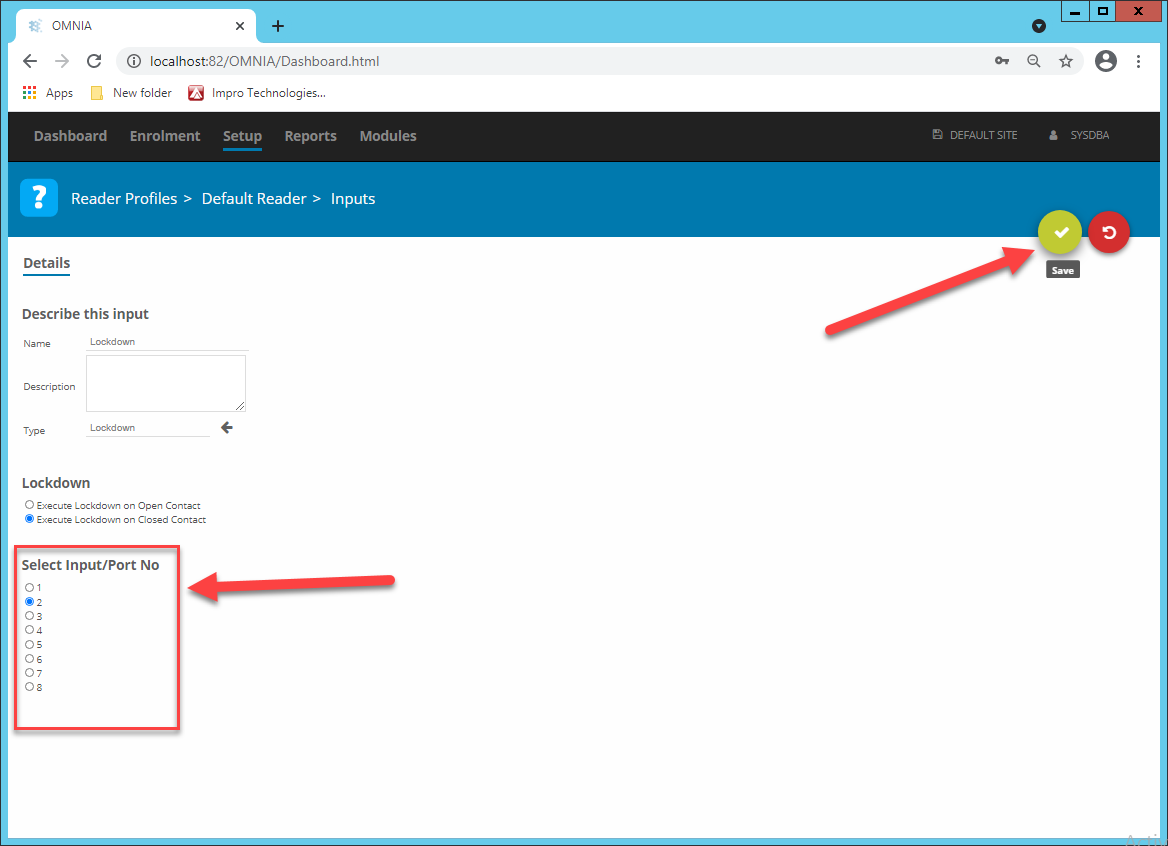

Make sure you are choosing the correct input, then save
Your input button will now Trigger a Lockdown when pressed.
