Adding Cameras into Cathexis

Adding Cameras into Cathexis, creating Database, setting motion recording, analytics, and schedules

Setting up your Cameras

-Open application for CathexisVision

(1-1)

-Login in using:
Name: admin
Password: admin

Right Click on the tab Open tab>Setup
or select Site>Open Tab>Setup

(1-2)

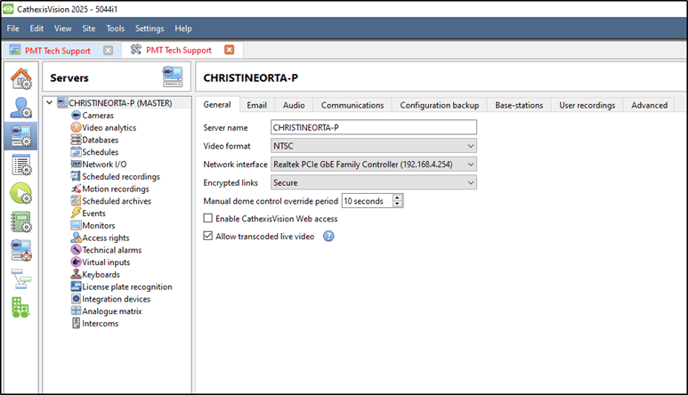

Look for the Icon (1-3)

(1-3)

Setting up your Database
Select Database from the tree. Select New

(2-1)

Select New

(2-2)

Choose Size and Select OK

(2-3)

Select OK

(2-4)

Setting up Cameras
In the drop tree select Cameras

(3-1)

Right Click on the right side or select new at the bottom of the page.

(3-2)

Scan for the cameras IP

(3-3)

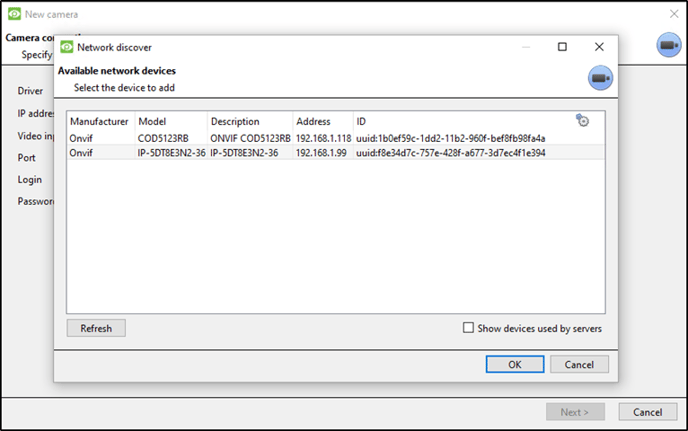

Select which camera you would like to use.

(3-4)

Select the driver that your specific camera uses.

(3-5)

Enter the cameras Login and Password. Select Next >

(3-6)

Name your camera. Select Next >

(3-7)

Select 2 Unused (unicast) to create a second feed for analytics. Then select Yes to enable.

(13-8)

Select Next >

(3-9)

Choose Yes or No and select Next >

(3-10)

Select Enable PTZ if you have a PTZ camera. Select Next >

(3-11)

CAMERA CONFIGURATION

(3-12)

Scheduled Recording

(3-13)

Motion Recording

(3-14)

Analytics Recording

(3-15)

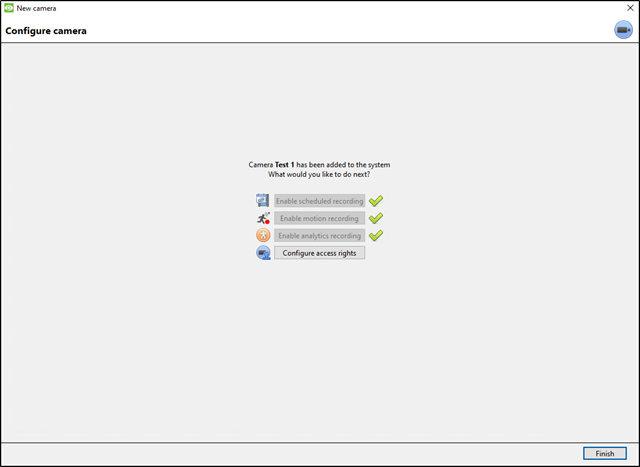

Select Finish

(3-16)

Video Analytics

Select Video analytics from tree. Select New

(4-1)

New video analytics select Camera, Type, and Algorithm.

(4-2)

Create Zones, Advanced settings, Day/Night, and Triggers. Click OK.

(4-3)

SCHEDULES
Select New

(5-1)

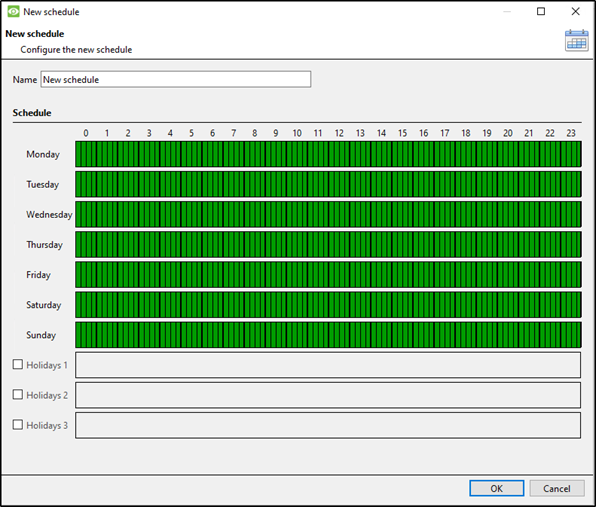

Highlight the day and times you would like to record.

(5-2)
